SQA85

Category： Askar

High-quality quintuplet air-spaced SD glass Petzval Astrograph.

Retail Price:

$ 2395

Quantity

Back Ordered

In stock Back Ordered

Upon package arrival, expect to pay customs duties and VAT to customs

leave a message now >

add to cart >

buy now >

leave a message now >

add to cart >

buy now >

隐藏域元素占位

这里是标题一h1占位文字

Category：这里是占位文字

这里是占位文字

尺码
- S
- M
- XL
- XXL
颜色较长
- 红
- 粉
- 蓝蓝蓝蓝蓝
- 黑色黑色黑色黑色

Retail Price:

¥ 55542

Quantity

Back Ordered

Quantity

库存剩余

465465123

Upon package arrival, expect to pay customs duties and VAT to customs.

leave a message now >

add to cart >

buy now >

Product introduction
Product introduction
Specifications
Video
Images
Download

- Commodity name: SQA85
- Commodity ID: SQA85
High-quality quintuplet air-spaced SD glass Petzval Astrograph.

Parameters
Aperture size	85mm
Focal length	408mm
Focal ratio	f/4.8
Objective lens	Quintuplet petzval APO（including two pieces of SD glass）
Total length	403mm(when the dew shield is contracted) 439mm(when the dew shield is stretched)
Format specifications	Full-frame
OTA weight	3.64kg
Gross weight（including tube ring and dovetail plate）	4.62kg
Rear-end thread type	M48/M54/M68 adapters
Rear-end connection distance	Support 40-70mm range (Recommended connection length is 55mm)
Standard package items	a SQA85 OTA, an Oxford cloth case

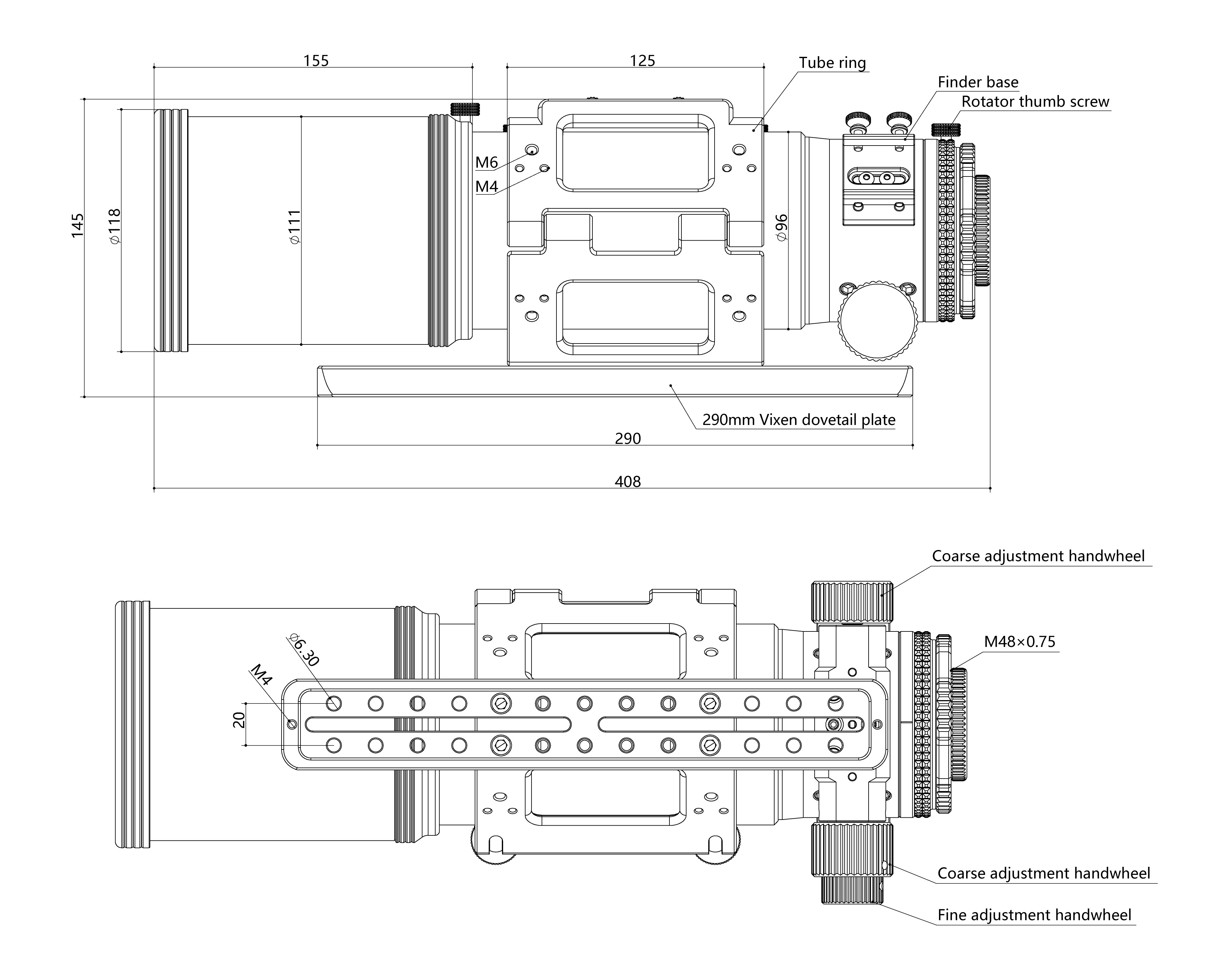

Product Size Diagram

SQA85 Connection Diagram

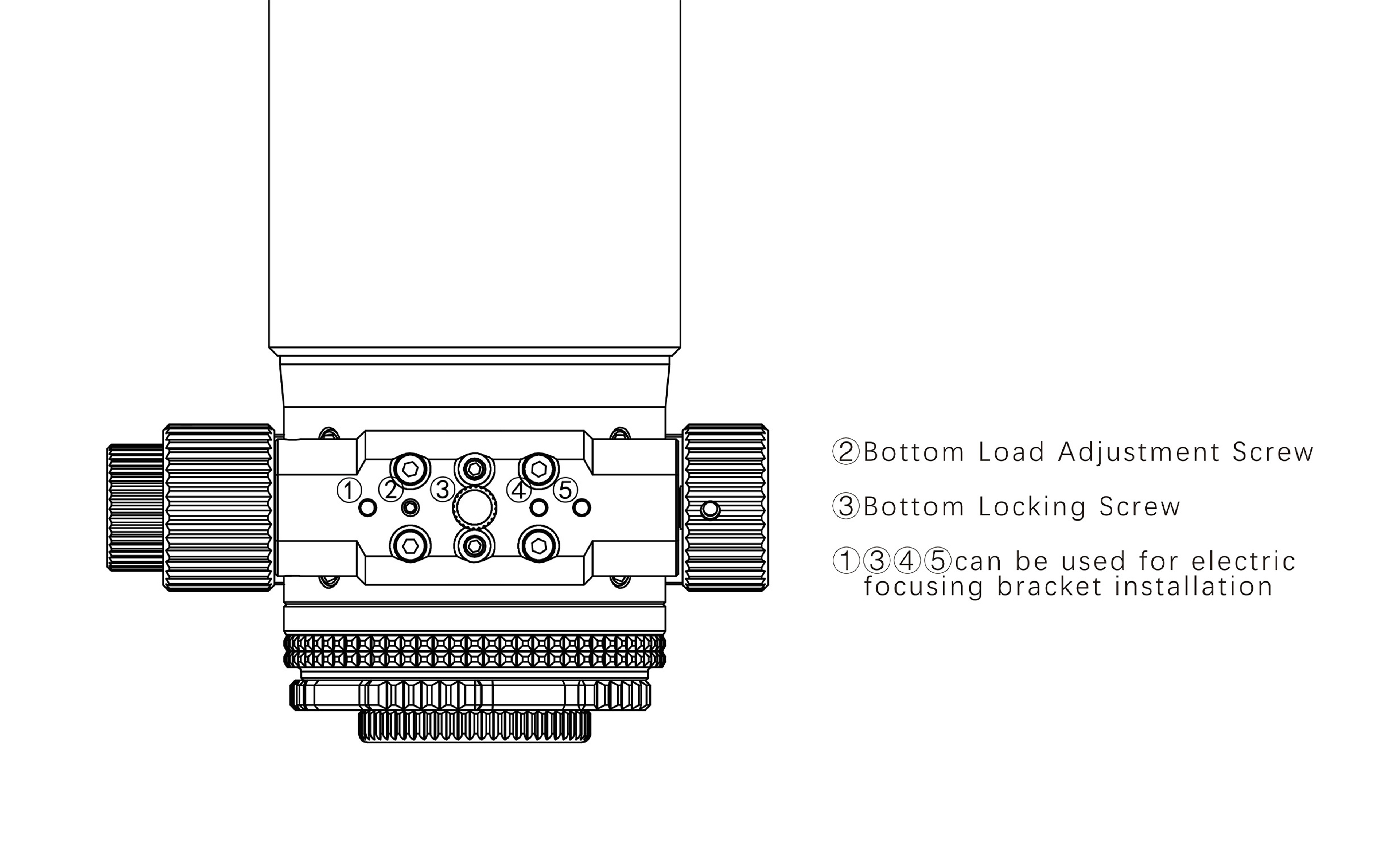

The Locking Screw Position Diagram

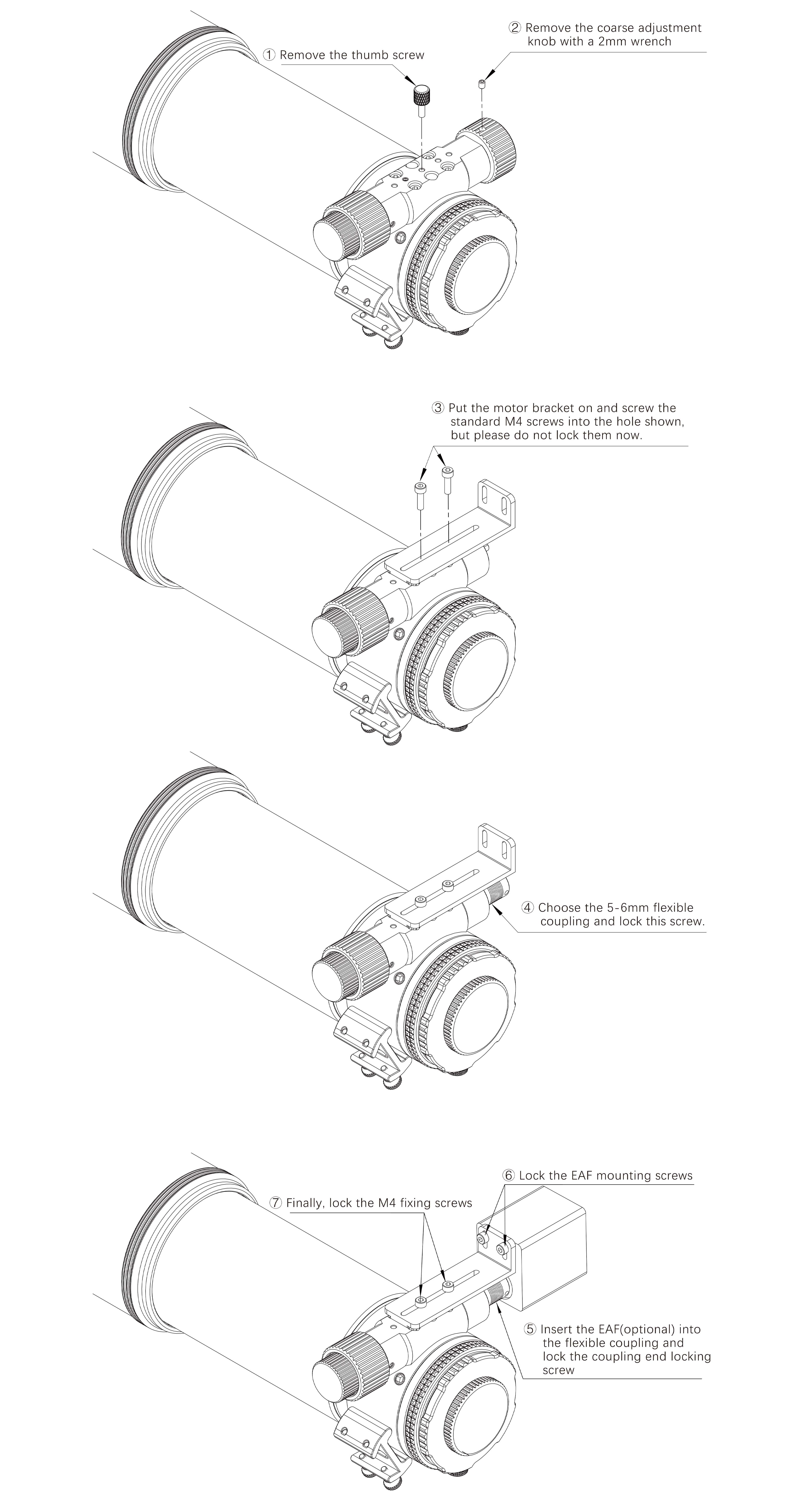

SQA85 Electronic Focuser Assembly Diagram

谭琨 | Veil Nebula | ASKAR SQA85 + ToupTek 2600c

Rumen Bogdanovski | The Christmass Tree NGC 2264 | ASKAR SQA85 + ZWO ASI2600

Mr.ZhuLiQun | Veil Nebula | ASKAR SQA85 + ZWO ASI6200MM

sandwall | NGC6590 | ASKAR SQA85 + ZWO ASI 2600MC Pro

sandwall | M31 | ASKAR SQA85 + ZWO ASI 2600MC Pro

Mr.Wang Hao | NGC2264 | ASKAR SQA85 + ZWO ASI 2600MC Pro

Product introduction

Specifications

Parameters
Aperture size	85mm
Focal length	408mm
Focal ratio	f/4.8
Objective lens	Quintuplet petzval APO（including two pieces of SD glass）
Total length	403mm(when the dew shield is contracted) 439mm(when the dew shield is stretched)
Format specifications	Full-frame
OTA weight	3.64kg
Gross weight（including tube ring and dovetail plate）	4.62kg
Rear-end thread type	M48/M54/M68 adapters
Rear-end connection distance	Support 40-70mm range (Recommended connection length is 55mm)
Standard package items	a SQA85 OTA, an Oxford cloth case
