SQA106

Category： SQA Series

Super fine 106mm aperture quintuplet air-spaced SD glass Petzval Astrograph.

Retail Price:

$ 3395

Quantity

Back Ordered

In stock Back Ordered

Upon package arrival, expect to pay customs duties and VAT to customs

leave a message now >

add to cart >

buy now >

leave a message now >

add to cart >

buy now >

隐藏域元素占位

这里是标题一h1占位文字

Category：这里是占位文字

这里是占位文字

尺码
- S
- M
- XL
- XXL
颜色较长
- 红
- 粉
- 蓝蓝蓝蓝蓝
- 黑色黑色黑色黑色

Retail Price:

¥ 55542

Quantity

Back Ordered

Quantity

库存剩余

465465123

Upon package arrival, expect to pay customs duties and VAT to customs.

leave a message now >

add to cart >

buy now >

Product introduction
Product introduction
Specifications
Video
Images
Download

- Commodity name: SQA106
- Commodity ID: SQA106
Super fine 106mm aperture quintuplet air-spaced SD glass Petzval Astrograph.

Parameters
Aperture size	106mm
Focal length	509mm
Focal ratio	f/4.8
Objective lens	Quintuplet petzval APO（including two pieces of SD glass）
Total length	516mm(when the dew shield is contracted) 586mm(when the dew shield is stretched)
Format specifications	full frame（44mm），upgrade to the medium format(55mm)
OTA weight	5.82kg
Gross weight（including tube ring and dovetail plate）	8.12kg
Rear-end thread type	M48/M54/M68 adapters
Rear-end connection distance	Support 48-78mm range (Recommended connection length is 55mm)
Standard package items	a SQA106 OTA, an Oxford cloth case

Product Size Diagram

SQA106 Connection Diagram

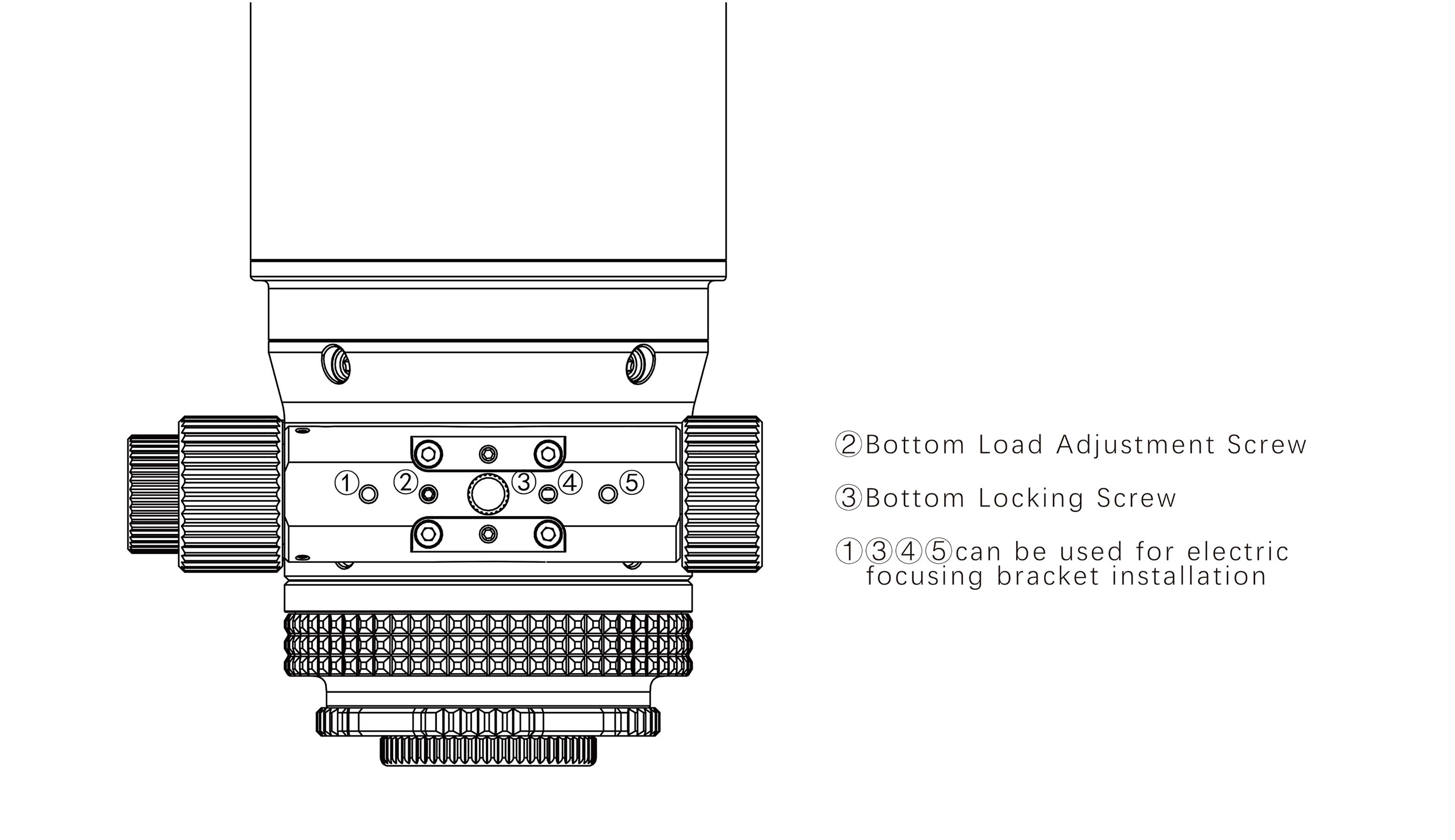

The Locking Screw Position Diagram

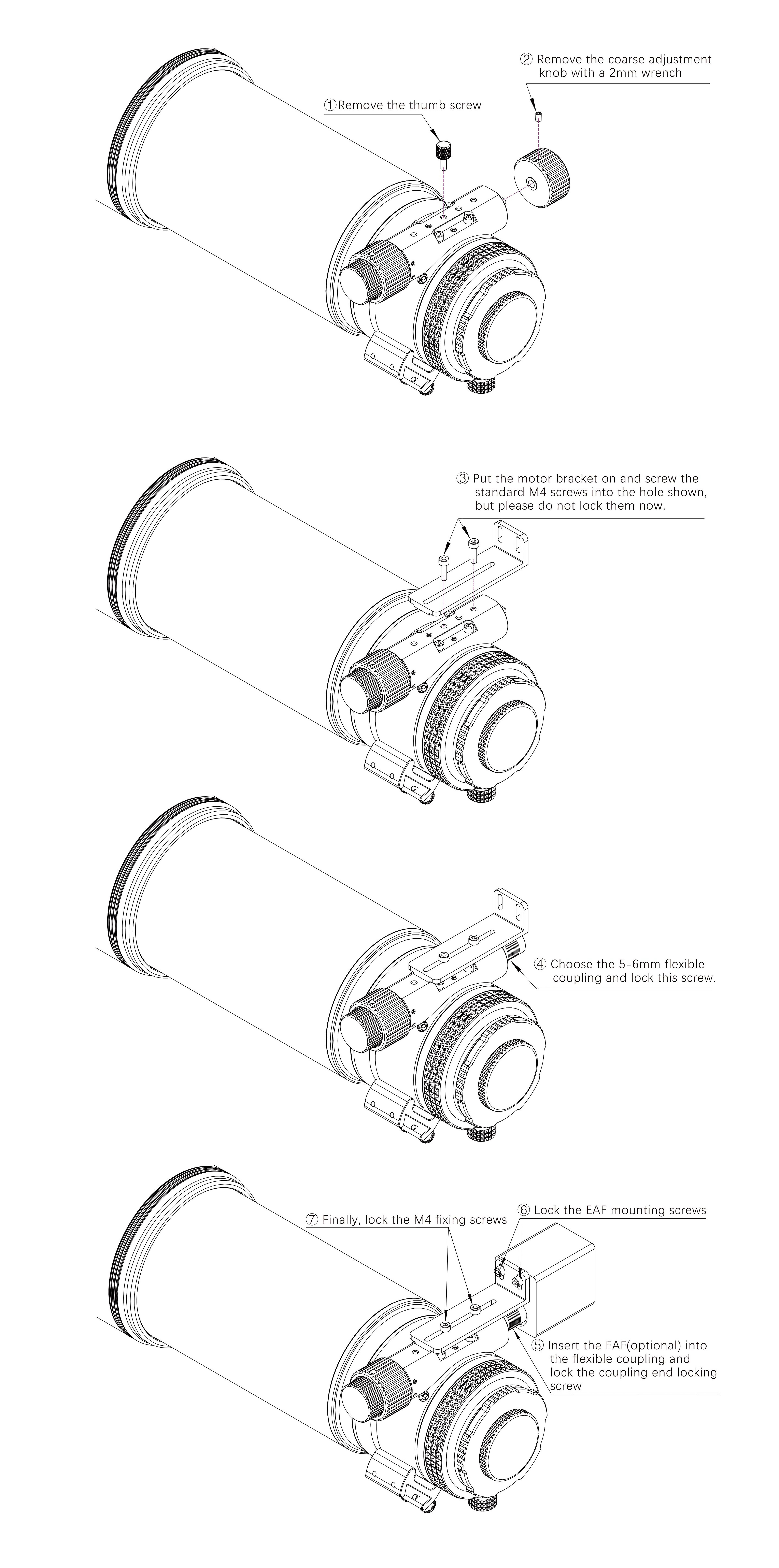

SQA106 Electronic Focuser Assembly Diagram

国产电灯泡 | NGC6888 | ASKAR SQA106 + ZWO ASI 6200MM

Ralf Rohner | The Cosmic Squid | ASKAR SQA106 + ZWO ASI 1600MM Pro

Mr.TianXingZhe | ic5146 | ASKAR SQA106 + ZWO ASI2600MC

Drew Evans | M31 Andromeda Galaxy | ASKAR SQA106 + 2400mc Pro full frame OSC

Product introduction

Specifications

Parameters
Aperture size	106mm
Focal length	509mm
Focal ratio	f/4.8
Objective lens	Quintuplet petzval APO（including two pieces of SD glass）
Total length	516mm(when the dew shield is contracted) 586mm(when the dew shield is stretched)
Format specifications	full frame（44mm），upgrade to the medium format(55mm)
OTA weight	5.82kg
Gross weight（including tube ring and dovetail plate）	8.12kg
Rear-end thread type	M48/M54/M68 adapters
Rear-end connection distance	Support 48-78mm range (Recommended connection length is 55mm)
Standard package items	a SQA106 OTA, an Oxford cloth case
