160APO
Category： Products

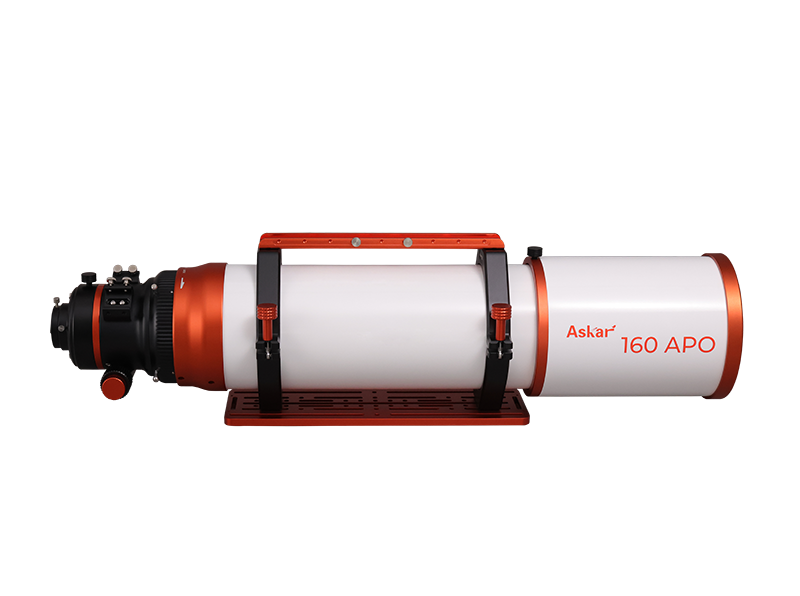

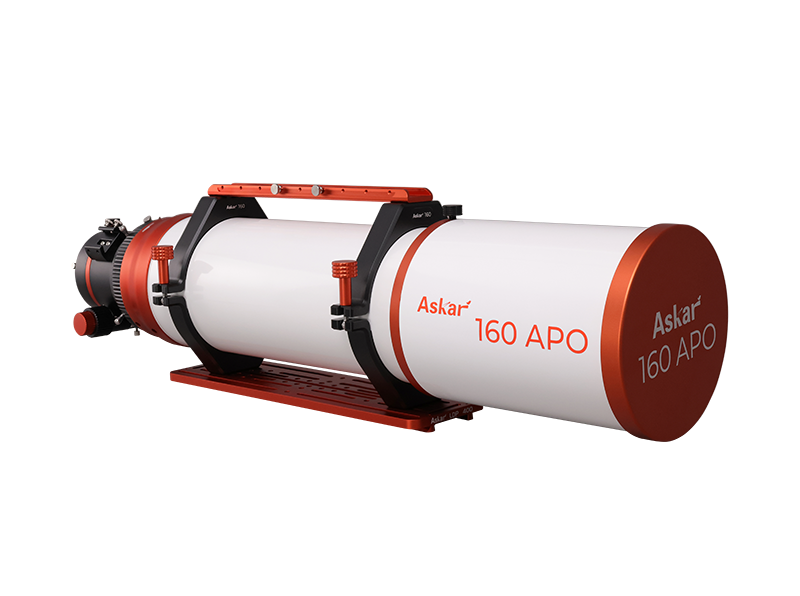

The Askar 160APO is a high-quality astrograph with a large aperture.
Retail Price:
$ 3845
0
In stock Out of stock隐藏域元素占位
这里是标题一h1占位文字
Category： 这里是占位文字
这里是占位文字
-
尺码
- S
- M
- XL
- XXL
-
颜色较长
-
红
-
粉
-
蓝蓝蓝蓝蓝
-
黑色黑色黑色黑色
-
Retail Price:
¥ 55542
库存剩余
465465123
Upon package arrival, expect to pay customs duties and VAT to customs.
- Product introduction
- Product introduction
- Specifications
- Video
- Images
- Download
-
- Commodity name: 160APO
- Commodity ID: 160APO
The Askar 160APO is a high-quality astrograph with a large aperture.
-
-
Parameters Aperture size
160mm
Focal length
1120mm
Focal ratio
f/7
Objective lens
Triplet air-spaced APO (including one ED glass)
Total length
883mm(when the dew shield is contracted)
996mm(when the dew shield is stretched)The length of the rear retractable lens tube
115mm
OTA weight
11.4kg
Gross weight（including tube ring and dovetail plate）
13.6kg
Rear-end thread type
2"/1.25" visual adapters
Standard package items
an 160APO OTA, a pair of tube rings, a handle, an Askar 400mm Losmandy dovetail plate, an aluminum box，a manual
Product Size Diagram

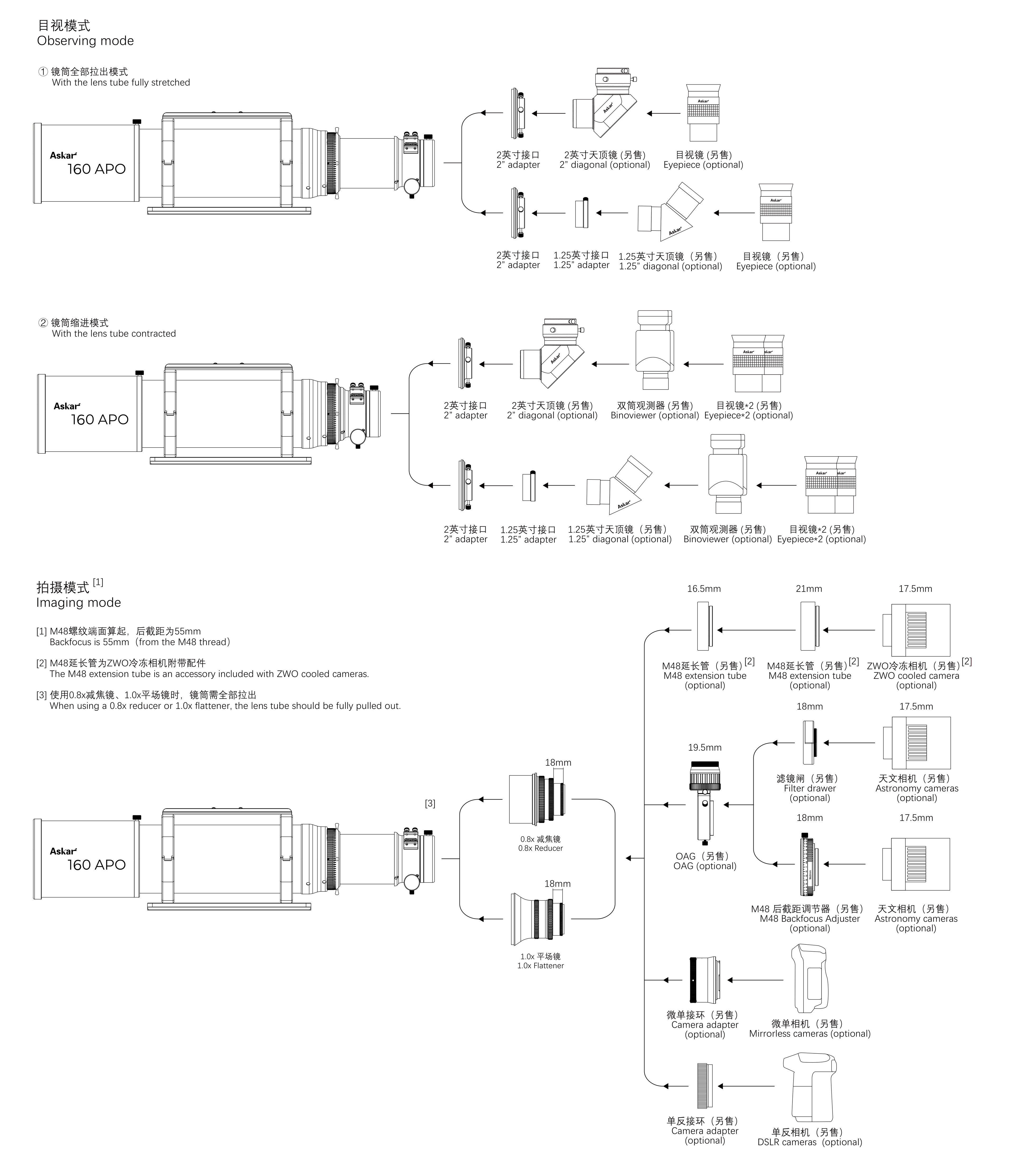

Connection Diagram
Instruction of using the 160APO retractable lens tube ( for eyepiece observation, 1.0x flattener, and 0.8x reducer)
The Locking Screw Position Diagram
160APO EAF（optional） Installation
Optical Path Diagram
Spot Diagram
-
小豆枕 | NGC2170 | ASKAR 160APO + 160APO 1x Full-frame Flattener + ZWO ASI2600 MCpro
小豆枕 | LDN1588&LBN866 | ASKAR 160APO + 160APO 1x Full-frame Flattener + ZWO ASI2600 MCpro
捕捉流星的人 | NGC2359 | ASKAR 160APO + 160APO 1x Full-frame Flattener + ZWO2600mc
小豆枕 | M78 | ASKAR 160APO + 160APO 0.8x Full-frame Reducer + ZWO ASI2600 MCpro
捕捉流星的人 | IC342 | ASKAR 160APO + 160APO 0.8x Full-frame Reducer + ZWO2600mc
Product introduction
Specifications
| Parameters | ||
Aperture size | 160mm | |
Focal length | 1120mm | |
Focal ratio | f/7 | |
Objective lens | Triplet air-spaced APO (including one ED glass) | |
Total length | 883mm(when the dew shield is contracted) | |
The length of the rear retractable lens tube | 115mm | |
OTA weight | 11.4kg | |
Gross weight（including tube ring and dovetail plate） | 13.6kg | |
Rear-end thread type | 2"/1.25" visual adapters | |
Standard package items | an 160APO OTA, a pair of tube rings, a handle, an Askar 400mm Losmandy dovetail plate, an aluminum box，a manual | |
| Product Size Diagram |
| Connection Diagram |
| Instruction of using the 160APO retractable lens tube ( for eyepiece observation, 1.0x flattener, and 0.8x reducer) |
| The Locking Screw Position Diagram |
| 160APO EAF（optional） Installation |
| Optical Path Diagram |
| Spot Diagram |
